METRIC
【Process product】： Threads Fittings, Button Head Fittings, Break Oil Fittings.....etc.
【Material】：Brass、Steel、Stainless Steel…etc.
Add to inquiry
【Material】：Brass、Steel、Stainless Steel…etc.
Specifications

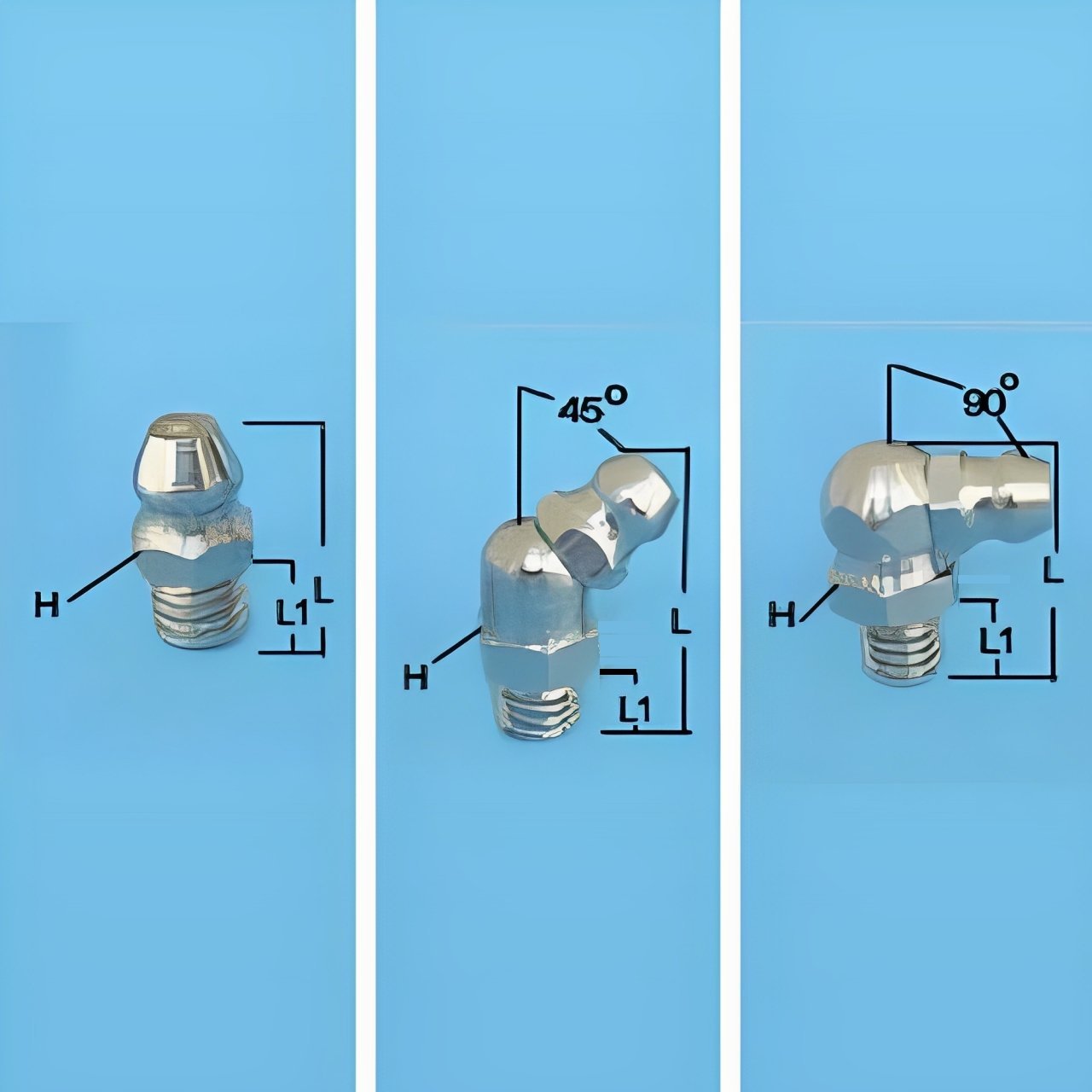

| ITEM NO. | DESCRIPTION | TYPE | L(mm以 下) | L1(mm以 下) | H(mm以 下) |
| 0607A | M6×0.75 | Str. | 14 | 5 | 7 |
| 0607C | M6×0.75 | 45° | 23 | 5.5 | 8 |
| 0607E | M6×0.75 | 90° | 18.5 | 5.5 | 9 |
| 0610A | M6×1.0 | Str. | 14 | 5 | 7 |
| 0610C | M6×1.0 | 45° | 23 | 5.5 | 8 |
| 0610E | M6×1.0 | 90° | 18.5 | 5.5 | 9 |
| 0810A | M8×1.0 | Str. | 16 | 6 | 9 |
| 08101A | M8×1.0 | Str. | 17 | 6 | 10 |
| 0810C | M8×1.0 | 45° | 24 | 6 | 9 |
| 08101C | M8×1.0 | 45° | 24 | 6 | 10 |
| 0810E | M8×1.0 | 90° | 20 | 6 | 9 |
| 08101E | M8×1.0 | 90° | 20 | 6 | 10 |
| 0812A | M8×1.25 | Str | 16 | 6 | 9 |
| 08121A | M8×1.25 | Str. | 17 | 6 | 10 |
| 0812C | M8×1.25 | 45° | 24 | 6 | 9 |
| 08121C | M8×1.25 | 45° | 24 | 6 | 10 |
| 0812E | M8×1.25 | 90° | 20 | 6 | 9 |
| 08121E | M8×1.25 | 90° | 20 | 6 | 10 |
| 1010A | M10×1.0 | Str | 17.5 | 6.5 | 11 |
| 1010C | M10×1.0 | 45° | 25 | 7 | 11 |
| 1010E | M10×1.0 | 90° | 20 | 7 | 11 |
| 1012A | M10×1.25 | Str | 17.5 | 6.5 | 11 |
| 1012C | M10×1.25 | 45° | 25 | 7 | 11 |
| 1012E | M10×1.25 | 90° | 20 | 7 | 11 |
| 1015A | M10×1.5 | Str | 17.5 | 6.5 | 11 |
| 1015C | M10×1.5 | 45° | 25 | 7 | 11 |
| 1015E | M10×1.5 | 90° | 20 | 7 | 11 |
| 1212A | M12×1.25 | Str | 20 | 7 | 14 |
| 1212C | M12×1.25 | 45° | 25 | 7.5 | 14 |
| 1212E | M12×1.25 | 90° | 22 | 7.5 | 14 |
| 1215A | M12×1.5 | Str | 20 | 7 | 14 |
| 1215C | M12×1.5 | 45° | 25 | 7.5 | 14 |
| 1215E | M12×1.5 | 90° | 22 | 7.5 | 14 |
| 1217A | M12×1.75 | Str | 20 | 7 | 14 |
| 1217C | M12×1.75 | 45° | 25 | 7.5 | 14 |
| 1217E | M12×1.75 | 90° | 22 | 7.5 | 14 |
