UNF

UNF

UNF
【Process product】： Threads Fittings, Button Head Fittings,Break Oil Fittings.....etc.
【Material】：Brass、Steel、Stainless Steel…etc.
Add to inquiry
Specification

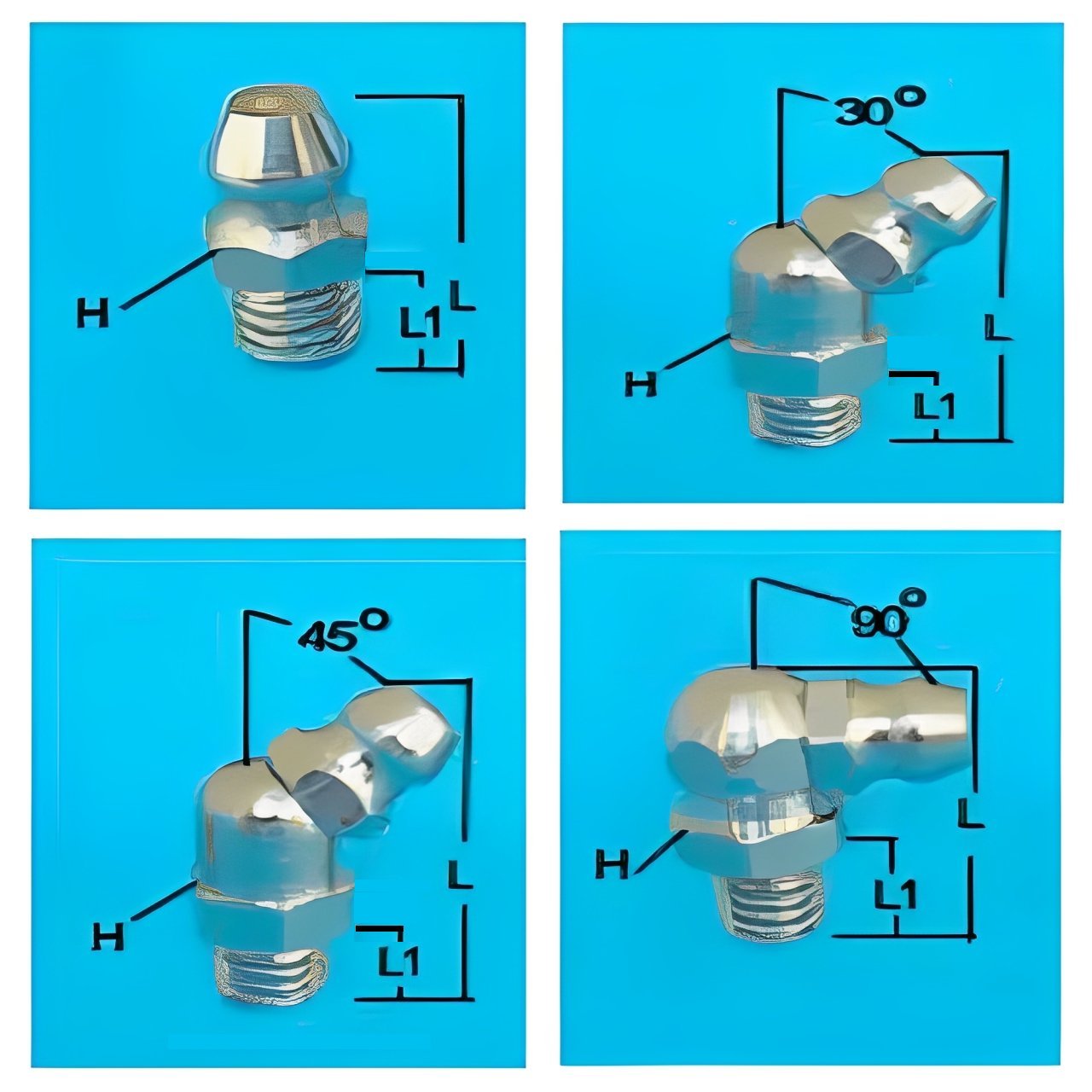

ITEM NO. DESCRIPTION TYPE L(mm以 下) L1(mm以 下) H(mm以 下)
4128A 1/4"-28 Str. 14.0 5.0 8
41281A 1/4"-28 Str. 12.5 3.5 8
41282A 1/4"-28 Str. 17.0 8.0 8
41283A 1/4"-28 11/16" Str. 17.3 8.5 8
41284A 1/4"-28 15/16" Str. 23.9 15.5 8
41285A 1/4"-28 1-1/8" Str. 28.7 19.5 8
41286A 1/4"-28 1-5/8" Str. 41.3 25.0 8
4128B 1/4"-28 30° 20.0 5.0 9
4128C 1/4"-28 45° 21.0 5.0 9
4128D 1/4"-28 65° 20.0 5.0 9
4128E 1/4"-28 90° 19.0 5.0 9
6524A 5/16"-24 Str. 17.0 6.0 10
6524B 5/16"-24 30° 22.5 6.0 10
6524C 5/16"-24 45° 24.0 6.0 10
6524D 5/16"-24 65° 22.5 6.0 10
6525E 5/16"-24 90° 20.0 6.5 10
8324A 3/8"-24 Str  17.5 6.5 11
8324B 3/8"-24 30° 23.0 6.5 11
8324C 3/8"-24 45° 25.0 6.5 11
8324D 3/8"-24 65° 23.0 6.5 11
8324E 3/8"-24 90° 21.0 6.5 11
