NPT

NPT

NPT
【Process product】： Threads Fittings, Button Head Fittings,Break Oil Fittings.....etc.
【Material】：Brass、Steel、Stainless Steel…etc.
Add to inquiry
Specifications

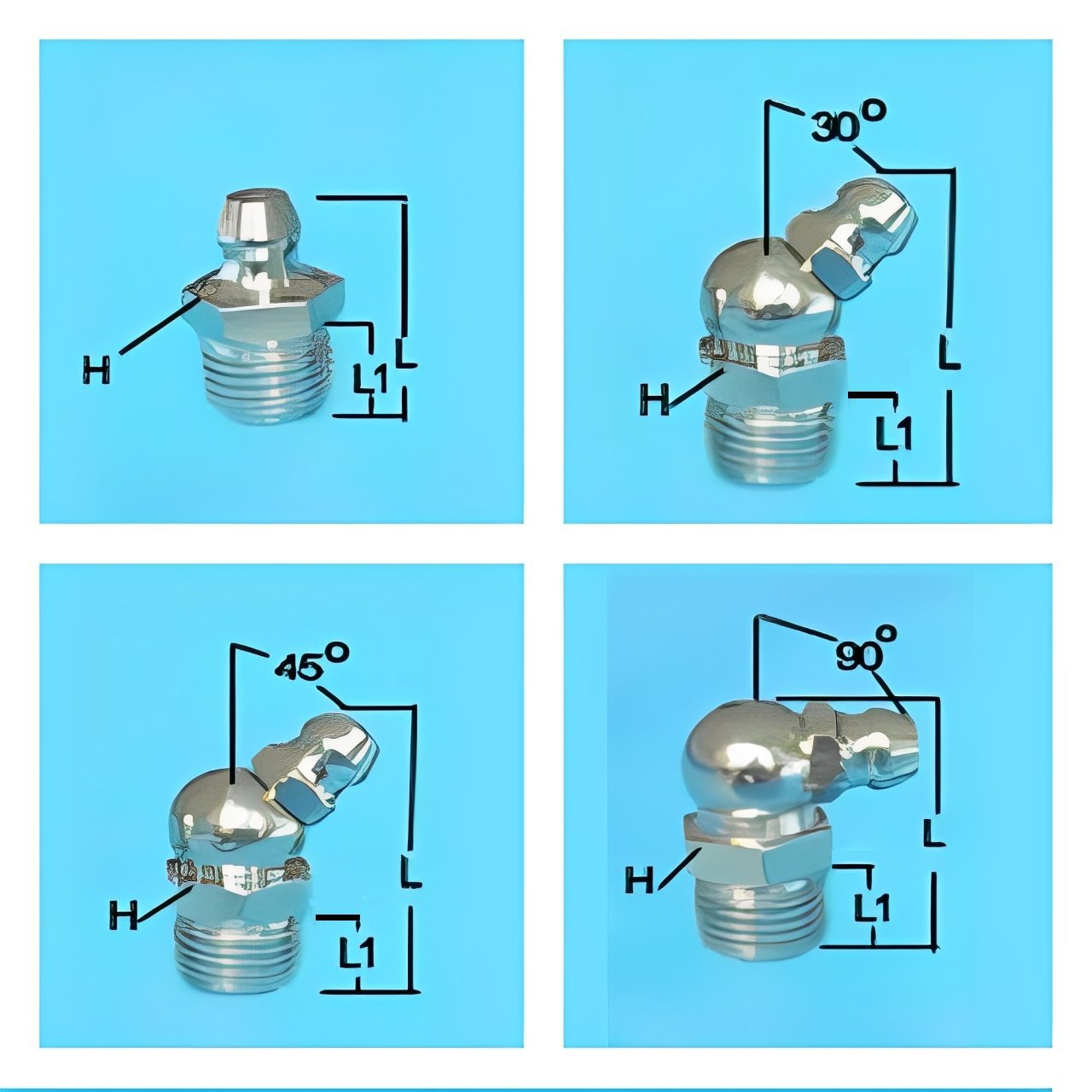

ITEM NO. DESCRIPTION TYPE L(mm以下) L1(mm以下) H(mm以下)
8127A 1/8"-27 Str.(180°) 17.5 7 11
81271A 1/8"-27 Str. 32 19.5 11
81272A 1/8"-27 Str. 45 32.5 11
81273A 1/8"-27 Str. 66.5 55 11
81274A 1/8"-27 Str. 16.5 6 11
81275A 1/8"-27 Str. 23 9 11
8127B 1/8"-27 30° 23 8 11
81271B 1/8"-27 30° 53 32 11
81272B 1/8"-27 30° 22 5 11
8127C 1/8"-27 45° 22.5 7.5 11
81271C 1/8"-27 45° 25 9 11
8127D 1/8"-27 65° 22 7.5 11
81271D 1/8"-27 65° 30 14 11
81272D 1/8"-27 65° 20 5 11
8127E 1/8"-27 90° 21 7.5 11
81271E 1/8"-27 90° 46 32 11
81272E 1/8"-27 90° 19.5 5.5 11
81273E 1/8"-27 90° 23 9 11
4118A 1/4"-18 Str. 20 8 14
4118B 1/4"-18 30° 25 8 14
4118C 1/4"-18 45° 26 8 14
4118D 1/4"-18 65° 25 8 14
4118E 1/4"-18 90° 23 8 14
