【Process product】： Threads Fittings, Button Head Fittings,Break Oil Fittings.....etc.
【Material】：Brass、Steel、Stainless Steel…etc.
Add to inquiry
Specifications

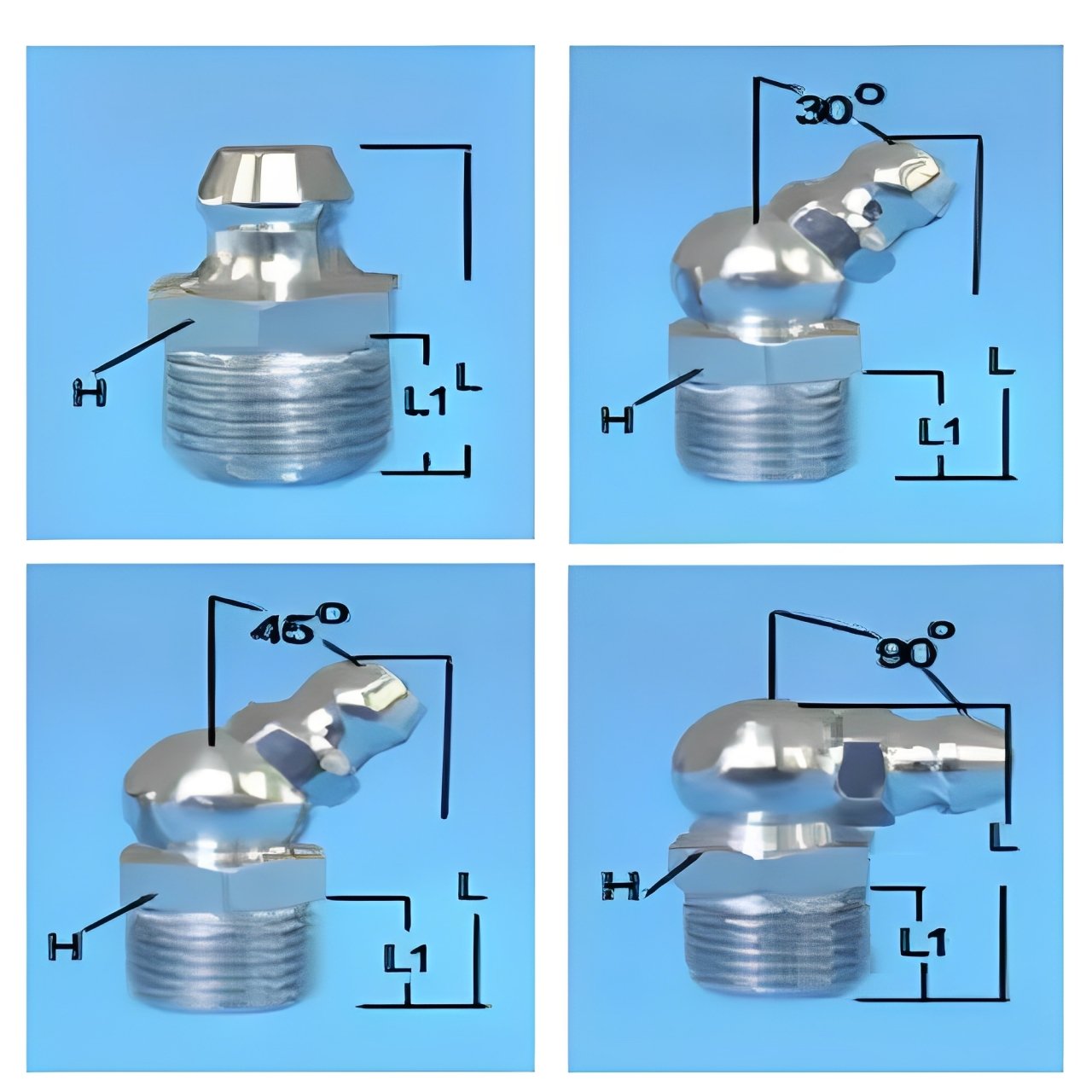

ITEM NO. DESCRIPTION TYPE L(mm以下) L1(mm以下) H(mm以下)
8128A 1/8"-28 Str. 17.0 6.5 10
81281A 1/8"-28 Str. 13.5 4.0 10
81282A 1/8"-28 Str. 20.0 8.5 10
8128B 1/8"-28 30° 23.0 7.0 10
8128C 1/8"-28 45° 25.0 7.0 10
81281C 1/8"-28 45° 27.0 8.5 10
8128D 1/8"-28 60° 23.0 7.0 10
8128E 1/8"-28 90° 21.0 7.0 10
81281E 1/8"-28 90° 22.5 8.5 10
4119A 1/4"-19 Str. 21.0 8.5 14
4119B 1/4"-19 30° 25.0 8.0 14
4119C 1/4"-19 45° 26.0 8.0 14
4119D 1/4"-19 60° 25.0 8.0 14
4119E 1/4"-19 90° 22.0 8.0 14
