UNF BREAK OIL

UNF BREAK OIL

UNF BREAK OIL
【Process product】： Threads Fittings, Button Head Fittings, Break Oil Fittings.....etc.
【Material】：Brass、Steel、Stainless Steel…etc.
Add to inquiry
Specifications

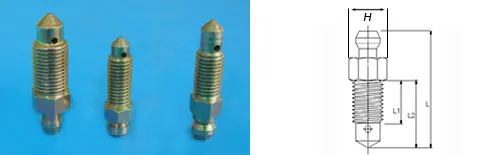

ITEM NO. DESCRIPTION L(mm以 下) L1(mm以 下) L2(mm以 下) H(mm以 下)
B412801 1/4"×28UNF 23.5 11 16 6
B412802 1/4"×28UNF 25 11.5 17 7
B412803 1/4"×28UNF 26.5 10.5 16 8
B412804 1/4"×28UNF 29.5 13 18.5 8
B412805 1/4"×28UNF 32 11 16.5 9.5
B412806 1/4"×28UNF 32.5 14 19.5 9.5
B412807 1/4"×28UNF 33 11 16 10
B652401 5/16"×24UNF 25.5 9 17 8
B832401 3/8"×24UNF 25 9.5 15 10
B832402 3/8"×24UNF 25.5 13 18 9.5
B832403 3/8"×24UNF 26 9 16 10
B832404 3/8"×24UNF 29.5 10 17.5 10
B832405 3/8"×24UNF 31.5 12 19 9.5
B832406 3/8"×24UNF 33.5 11.5 21 11
B832407 3/8"×24UNF 34.5 13.5 21.5 10
B832408 3/8"×24UNF 36.5 12 17.5 12
B672001 7/16"×20UNF 30 12.5 20 12
B672002 7/16"×20UNF 37 12.5 20 12
B672003 7/16"×20UNF 38 16.5 25 11
B672004 7/16"×20UNF 41.5 17.5 26.5 12
B672005 7/16"×20UNF 43 20.5 28 11
B672006 7/16"×20UNF 54 18 25 12
B672007 7/16"×20UNF 61 16.5 24 11
B672008 7/16"×20UNF 61 22.5 30 12
B212001 1/2"×20UNF 36 14 23 14
B212002 1/2"×20UNF 48.5 23.5 33 14
